Reports

Job impact dashboard

The Job Impact Dashboard feature was introduced in Network version 25R2.0.

The following enhancement is available in this release.

Test queries

Queries can now be tested on the tile configuration. Test the query to ensure it returns the desired results before adding the tile to the dashboard. Previously, queries could be tested in the SQL Query Editor only.

This enhancement is enabled by default.

Test a query

Queries can be tested only after a new tile or duplicated tile is saved.

  1. On the Job Impact Dashboard (Reports), click Manage Dashboard.

  2. Click Add Tile or duplicate an existing tile.

  3. Provide any required information in the Details section.

  4. In the Query section, add the SQL query for the tile. You can create a new query or customize any of the sample queries.

  5. Save the tile.

  6. Open the tile again.

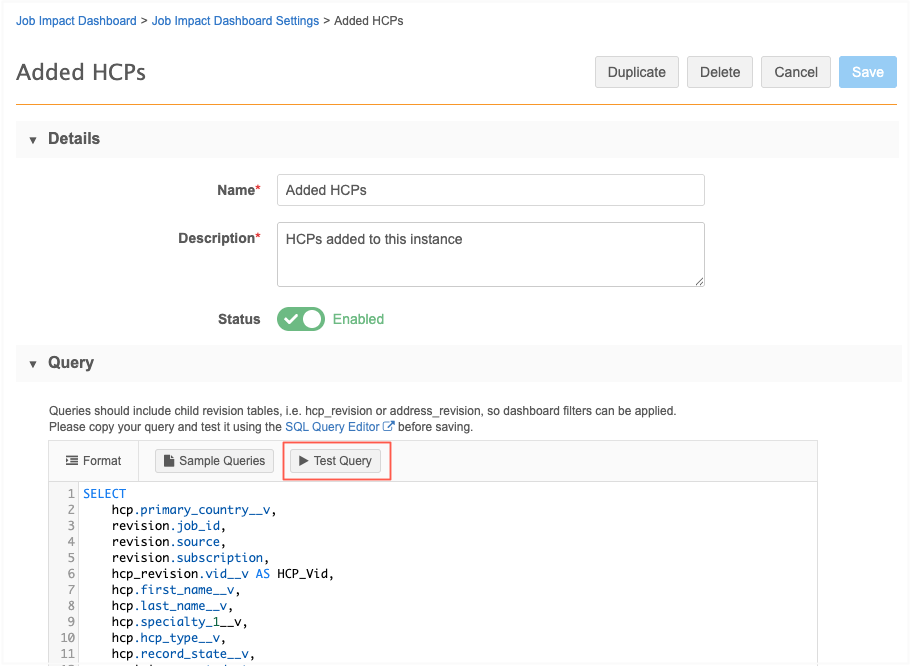

  7. In the Query section, click Test Query.

  8. In the Test Query dialog, provide sample filters.

  9. Click Apply Filters.

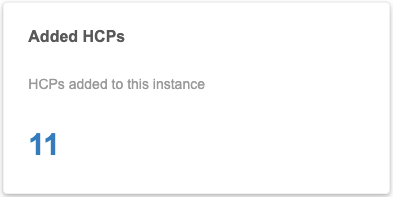

    The query runs and provides counts for a snapshot of one tile.

  10. If a count (greater than 0) displays, click the link to view the results in a Network table.

  11. To edit the query, close the pop-up and return to the tile to make the changes and then test the query again.
