Vault CRM Bridge setup

Before you create a Vault CRM bridge, complete the following tasks:

System - Create a system in Network for Vault CRM.

For details, see Adding systems.
Credentials - Vault credentials are required to connect Network to Vault CRM. Ensure the credentials are saved in Network (Settings > External Credentials) before you begin.

For details, see Add Vault credentials.

Network credentials must also be saved in Vault CRM. For details, see Vault CRM Help: Administrative Tools.
Network - Vault CRM configuration - The integration steps between Network and Vault CRM must be completed.

See the Vault CRM Help: Configuring Network Integration topics.

This includes managing Vault CRM Help: Network mappings for objects, fields, and references.
Target subscription - Create the target subscription that will be used to export data to Vault CRM.

Configure the target subscription

Before you create a Network Bridge, define the target subscription configuration that you'll use for the bridge. There are a few recommended settings for subscriptions that are used to export data to Vault CRM.

To create the target subscription:

In the Admin console, click System Interfaces > Target Subscriptions.
Click Add Subscription.

Configure the settings in each section.
Details - Define the following settings:
- Name - Type a relevant name for the subscription.
- Type - Choose Data.
- System - Expand the list and choose the Vault CRM system that you will export the data to.

  If you haven't defined a system yet, go to System Interfaces > Systems and create the system.
- Description - Type a meaningful description for this subscription.

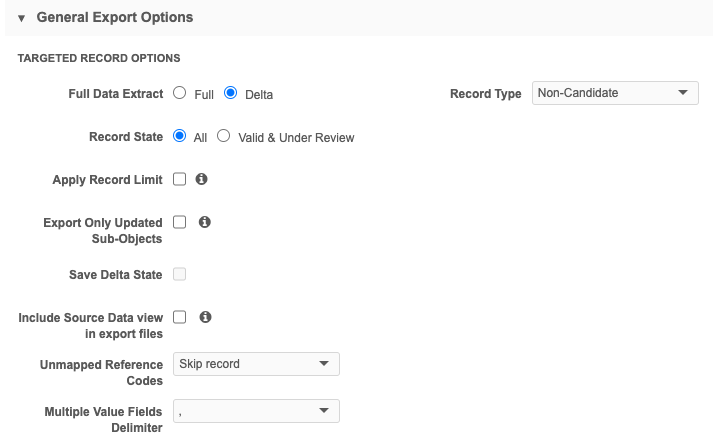

General Export - These setting values are recommended for target subscriptions for Vault CRM bridges.

Targeted Record Options
- Full Data Extract - This setting is ignored for the Vault CRM bridge jobs. Account records are always exported as a Delta extract.

  Each job is limited to a specific number of records:
  - Default record limit - 300,000 records
  - United States record limit - 150,0000 records
  Records that have the oldest update time are exported first. The next time the bridge job runs, the next batch of records are exported, and so on.
- Record Type - Choose Non-Candidate to export all records except for candidate records.
- Record State - Choose All so records with all record states are exported.
- Apply Record Limit - This setting is ignored for Vault CRM Bridge jobs. A default limit of 300,000 (150,000 for the United States) is automatically applied to jobs.
- Export Only Updated Sub-Objects - Do not select this setting. All sub-objects should be exported in this subscription.
Hierarchy - Determine the related entities to export.
- Level of Hierarchy to Export - By default, one level of parent will be exported to ensure that relationships are intact.
- Apply "Export Options" to the target records related entities - Choose this option if you want to filter the related entities that are exported based on any filters that you apply in the Export Options section below.
Reference Data - Do not select Include Reference Data Files. It is not required for Vault CRM Bridge subscriptions.
File Format - Do not change the default values in this section. Vault CRM expects target subscriptions to be comma delimited and to have a header row.

Format - The format of the export file. This is set to CSV by default.

Encoding - The encoding for the export. This is set to UTF-8 by default.

The following options help exported files to comply with Vault CRM's file acceptance format.

Delimiter- The character used to separate values in the exported .csv file. Choose comma (,).

Text Qualifier - The character to identify the beginning and end of text. Choose double quotes (").

Include header row? - Ensure that this is selected so the .csv file contains a header row.

Export File Format - Defines how the file is exported. Choose Compressed single file (default). This means that one compressed file will be exported and it will contain .csv file for each object.

Compression Format - Choose the Zip (zip) compression format. The target subscription will export one .zip file which will contain a .csv file for each object.

Export File/ Folder Name - Choose one of the following options:
- Default - The file exported with the following naming convention: exp_########.
- Include Name and Timestamp - The file is exported with the following naming convention: <subscription name>_YYMMDDTHHMMSSSSS; for example, CRM_Target_170113T191503397.
- Static Name - Do not choose this option. This exports the file with the same name, so the file and folder will be overridden each time the job runs.
Export Locations - Choose to save the exported file in the following locations:
- Default - The default path is outbound/<system_name>.
- Custom - Define a custom path.

  Administrators can give users specific access to FTP folders, so identifying a custom path for this subscription enables you to protect the data. Custom paths are not validated, so ensure that they are correct so your job does not fail.

  For information about accessing the files in your Network file system, see File Explorer.
- Export to Cloud Storage - Export the data directly to your private cloud storage. Exporting to Amazon S3 buckets are supported.

  The Amazon S3 bucket must be created with write access so you can export the files. For more information, see Exporting data to cloud storage.
File & Field Selection - Accept the Select Which Objects and Fields to Export default value.

All the enabled objects in your Network instance display.
- Veeva standard objects (HCO, HCP, Address, License, Parent HCO) - Accept the Export All Fields default value.
- Custom Key - Accept the Export All Fields default value. Custom keys filtered by the defined Vault CRM source system should be included in the target subscription.
- All other objects (custom objects and Network widget objects) - Choose the level of export.

  Custom objects and Network widget objects (Affiliation and Account Link) are not supported for the Network Bridge integration with Vault CRM but they do not impact the Bridge subscription job. They can be included in the target subscription if you plan to use the same file that is generated for the Network Bridge for another purpose; for example, to load custom object data through a Veeva Connector.

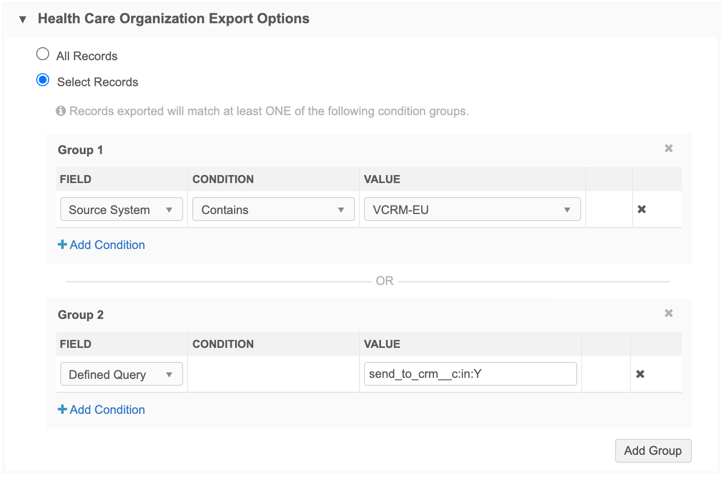

Export Options - Filter the objects to export.

Note: A primary country filter does not need to be configured. Vault CRM bridges are multi-country bridges by default. When the target subscription job runs, a primary country filter is automatically applied based on the country of the bridge job executing the target subscription.

A target subscription for a Vault CRM Bridge will have the following filter groups defined for HCOs and HCPs:
- Group 1
  - Field - Source System
  - Condition - Contains
  - Value - The Vault CRM system
- Group 2
  - Field - Defined Query
  - Value: send_to_crm__c:in:Y

    This query means that the record will be exported if the send to CRM flag is set to Y.
Transformation Rules - Displays any rules that you have applied to this subscription.

For example, create rules to remove specific address types from Vault CRM.

For more information, see Transformation rules.
Transformation Queries - Displays any queries that you have applied to this subscription.

For more information, see Transforming outbound data.

Note: Do not use transformation queries to filter relationships or addresses for Vault CRM using the Bridge. The Vault CRM Bridge does not just use exported files, it also involves other processes (data change requests, Network Account Search, direct downloads through the API, and so on) that do not use transformation queries.
In the Job Trigger Configuration section, accept the Manual option to run the subscription. The schedule for the subscription will be set in the Vault CRM Bridge configuration.
Save your changes.

The target subscription is available and can be applied to the Vault CRM Bridge configuration.

Network - Vault CRM license mappings

The Network License object is automatically mapped to the Vault CRM address__v object for the Vault CRM Network bridge. Each license type has its own mapping.

Vault CRM license information

For details, see the Licenses topic in the Vault CRM Online Help.

ASSMCA license

Note: These fields are available but the licenses are no longer actively supported by Veeva OpenData.

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
license_number__v	License	assmca__v	ASSMCA
vid__v	Network Entity ID	network_assmca_entity_id__v	Network ASSMCA Entity ID

CDS license

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
expiration_date__v	Expiration Date	cds_expiration_date__v	CDS Expiration Date
license_number__v	License	cds__v	CDS #
license_status__v	License Status	cds_status__v	CDS Status
vid__v	Network Entity ID	network_cds_entity_id__v	Network CDS Entity ID

Massachusetts Controlled Substances Registration (MCSR) license

Note: The full Network-Vault integration for MCSR licenses will be available in Vault CRM's 25R1.0 release. For additional information, see Massachusetts Controlled Substances Registration (MCSR) license.

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
expiration_date__v	Expiration Date	cds_expiration_date__v	CDS Expiration Date
license_number__v	License	cds__v	CDS #
license_status__v	License Status	cds_status__v	CDS Status
drug_schedule__v	Drug Schedule Details	cds_schedule__v	CDS Schedule
vid__v	Network Entity ID	network_cds_entity_id__v	Network CDS Entity ID

DEA license

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
expiration_date__v	Expiration Date	dea_expiration_date__v	DEA Expiration Date
license_number__v	License	dea__v	DEA #
vid__v	Network Entity ID	network_dea_entity_id__v	Network DEA Entity ID
license_status__v	License Status	dea_status__v	DEA Status
drug_schedule__v	Drug Schedule Details	dea_schedule__v	DEA Schedule
record_state__v	Record State	dea_address__v	DEA Address?

State (SLN) license

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
expiration_date__v	Expiration Date	license_expiration_date__v	License Expiration Date
license_status__v	License Status	license_status__v	License Status
license_number__v	License Number	license__v	License #
vid__v	Network Entity ID	network_license_entity_id__v	Network License Entity ID
license_eligibility__v	Prescriptive Authority	network_sample_eligibility__v	Network Prescriptive Authority
rxa_eligible__v	Sample Eligibility	network_rxa_eligible__v	Network RXA Eligible
license_status_condition__v	License Status Condition	network_license_status_condition__v	Network License Status Condition
grace_period__v	Grace Expiry	network_license_grace_expiry__v	Network License Grace Expiry
collab_agree_required__v	Collaborative Agreement Required	network_collab_agree_required__v	Network Collaborative Agreement Required
comprehensive_prescriptive_authority__v	Comprehensive Prescriptive Authority	network_comp_prescriptive_authority__v	Network Comprehensive Prescriptive Authority
comprehensive_sample_eligibility__v	Comprehensive Sample Eligibility	network_comp_sample_eligibility__v	Network Comprehensive Sample Eligibility
ctrl_substance_prescriptive__v	Controlled Substances Prescriptive Authority	network_ctrl_sub_prescriptive__v	Network Controlled Substances Prescriptive Authority
ctrl_substance_sample__v	Controlled Substances Sample Eligibility	network_ctrl_sub_sample_eligibility__v	Network Controlled Substances Sample Eligibility

State Distributor (Ohio TDDD) license

Network (License object)		Vault CRM (address__v object)
Field Name	Label	API Name	Label
license_number__v	License Number	state_distributor__v	State Distributor
expiration_date__v	Expiration Date	state_distributor_expiration_date__v	State Distributor Expiration Date
license_status__v	License Status	state_distributor_status__v	State Distributor Status
drug_schedule__v	Drug Schedule Details	state_distributor_category__v	State Distributor Category
vid__v	Network Entity ID	network_distributor_entity_id__v	Network Distributor Entity ID

Next step

When the prerequisite tasks are complete, the Vault CRM Bridge can be created.
